From 2.8% Leak Rate to 0.2%: How a US Roaster Fixed Quad-Seal Headaches with Dession

From "Why Is My Bag Leaning?" to Perfect Shelf Blocks: How One Roaster Fixed Quad-Seal Pouch Headaches with Dession

The Problem: Premium Beans, Amateur-Looking Bags

Walk into any Whole Foods or specialty grocery aisle and you'll see the same thing: premium coffee brands in crisp, blocky quad-seal pouches that stand upright like little billboards. That bag format — the Stabilo / flat-bottom four-side-seal design — is what high-end specialty roasters live by. It looks good on shelf, ships efficiently, and screams "this coffee is worth $18 a bag."

But there's a catch: quad-seal bags are unforgiving to produce. Unlike a simple pillow pouch, every corner junction has four layers of barrier laminate meeting at one point. If your heat distribution is off by even a few degrees, you get pinholes. If your film tracking drifts, your bag tilts. If your corner-crease bars are under-spec, the bag won't sit flat — and a leaning bag on a supermarket shelf is a bag that won't sell.

One roaster we worked with — a mid-size operation in the Pacific Northwest cranking through 8,000–10,000 lbs of green a week — was pulling their hair out over exactly this. They had a quad-seal line, but:

• 2–4% bag rejection rate from pinhole leaks at the four-corner junctions. Their grocery distributor was charging back every leaking unit — and the chargeback fees were worse than the product loss.
• Inconsistent bag presentation. Every third pallet, bags would come out with tilted seals or wonky corners. The quality manager was spending more time rejecting bags than cupping coffees.
• Degassing valves failing in transit. Hand-applied one-way valves were popping off during distribution — letting oxygen in and aroma out. Shelf-life claims of "18 months" were, in practice, more like 9.
• Film handling on heavy laminates. Their 128-micron matte-finish foil laminate was slipping on the pull rollers, causing artwork misregistration. When your brand block font is off-center by 3mm, buyers notice.

"We were spending as much time sorting bad bags as we were roasting coffee. The shelf presentation problem was killing deals with regional grocery chains. They'd open a case, see a couple of leaning bags, and assume the whole production was inconsistent."
— Operations Manager, Pacific Northwest specialty roaster

They evaluated European machines — a well-known Italian VFFS and a German quad-seal specialist. The Italian unit was €85,000 and still needed a standalone valve applicator. The German one topped €120,000 configured. Both had 24-week lead times. For a roaster that needs to pivot between SKUs mid-season, that price tag and wait time didn't pencil out.

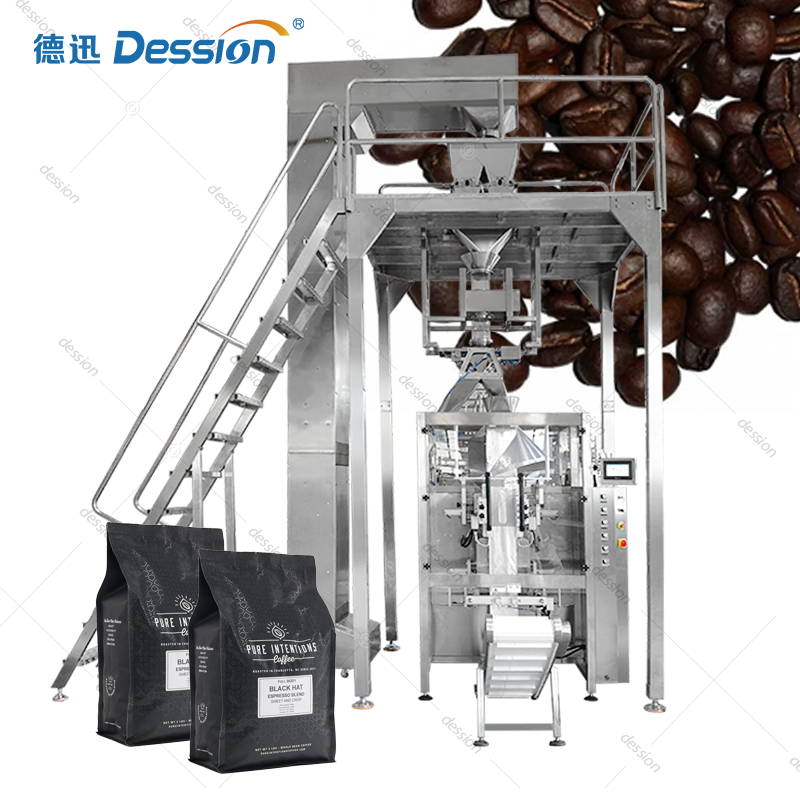

The Fix: Dession's Automatic Quad Seal Bag Vertical Coffee Bean Packaging Machine

Through an industry connection at the SCA Expo in Portland, the roaster's team got a demo of the Dession quad-seal VFFS — a live video walkthrough from the Foshan factory floor, running their exact film specs and 250g/500g/1kg bag dimensions. They placed an order at $22,600 (quad-seal configuration with integrated degassing-valve module and N₂ purge system). Compare that to a similarly-featured European quad-seal machine at $85,000–$120,000 — the Dession eliminates the European distributor margin and delivers the hardware directly from the factory floor in Foshan, China's packaging-machinery hub.

The Results: Chargebacks Disappeared, Shelf Blocks Stayed Straight

After a 2-day remote commissioning (Dession engineer walked the roaster's in-house tech through setup, HMI recipe programming, and film-threading in two video sessions), the quad-seal machine was in full production. Twelve months of real metrics:

ROI Snapshot — Year One

"The shelf-presentation issue is gone — completely. Our bags now stand dead-square and the corners are crisp. When a grocery buyer runs their thumb down the edge, they feel a clean crease, not a mushy wrinkle. That detail matters. We landed two new chains in 2025 specifically because our pack format finally matched our coffee quality."
— Production Manager, Pacific Northwest specialty roaster

Why the Dession Quad-Seal Actually Delivers

1. Four-Corner Independent Edge Ironing — No More Tilted Bags, No More Shelf Embarrassment

This is the feature that separates a real quad-seal machine from a converted pillow-bag VFFS. Each of the four corners has an independently controlled heating bar with PID temperature regulation to ±1°C. The bars iron the laminate crease before the main vertical and transverse seals close — meaning the corner geometry is set in stone before the product ever enters the bag. Result: every pouch sits flat, every corner is sharp, and your block-bottom bag stands like a brick on shelf — exactly what grocery buyers expect from the $14–$22 specialty-coffee price bracket.

2. Synchronized Inline Degassing Valve — Apply at Machine Speed, Not at a Workstation

Fresh-roasted coffee off-gasses CO₂ for days after roast. Without a one-way valve, bags balloon, seals break, and oxygen seeps back in — oxidizing those precious volatile aromatics. The Dession integrates a hot-press valve applicator directly into the film transport line: the valve is punched, placed, and thermally bonded while the film is still flat, before bag forming. No standalone station, no extra operator, no popped valves in the shipping case. The thermal bond is tested to hold through 72-hour temperature-cycling simulations — the kind of stress a case of coffee sees going from a roastery dock in Portland to a distribution center in Dallas in August.

3. Multi-Axis Servo Pulling That Handles the Heavy Stuff

Premium coffee brands love thick laminates — 128-micron matte foil, compostable bio-barrier films, high-opacity metallized PET. These films are stiff and slippery, and they'll drift on basic friction rollers within ten cycles. The Dession uses independent Panasonic/Omron servo drives on both film-pull and jaw axes. The result: artwork registration within 0.5mm consistently, even on the most aggressive barrier laminates. No wonky brand text, no off-center labels. Your packaging looks like it costs more than it did.

4. SUS304 + CIP-Ready — Coffee Oils Are Brutal, This Machine Doesn't Care

Dark-roast beans — French roast, Italian espresso profiles, the stuff the Pacific Northwest lives on — leave an oily residue that can gum up contact surfaces on lower-grade machines. The Dession is 100% SUS304 food-grade stainless steel on all product-contact surfaces. The forming tube, weighing bucket, and discharge chute are designed for quick strip-down and clean-in-place. CE, FDA, SGS, and ISO 9001 certified.

Technical Specs

📋 View full product page with videos, gallery, and configurator →

FAQ — What US Coffee Roasters Usually Ask

What's the actual lead time, and how long does shipping take to the US?

Standard build-to-order is 4–6 weeks. Ocean freight to any major US port (Portland, Seattle, Oakland, Long Beach, Houston, Newark) takes 25–35 days. Including customs clearance, you're looking at roughly 10–12 weeks from order to dock. Air freight is available for rush orders. Remote commissioning takes 1–2 days via video — no on-site technician required unless you specifically want one.

How fast can I switch between 8oz, 16oz, and 2lb bag sizes?

The quick-change forming shoulder is the magic here — swap the tube and dial in the recipe on the touchscreen, and you're done in about 12 minutes. The PLC stores 50 recipes, so once you've dialed in your 250g/500g/1kg parameters (seal temp, pull length, valve position), it's a one-button recall. Contract packers switching between three different client SKUs in a single shift love this feature.

Do you stock spare parts in the US or do I have to wait for stuff from China?

Every machine ships with a starter spares kit: extra sealing jaws, Teflon tape, replacement sensors, heating elements, and a full manual. For additional parts, DHL/FedEx International Priority delivers to any US metro area in 3–5 business days. Same-day video support means most issues are diagnosed and resolved without a part replacement in the first place.

How does this compare to a Rovema or Ilapak quad-seal machine?

Feature for feature, the Dession competes directly with European quad-seal VFFS machines priced at $85,000–$120,000. The difference: European brands route through a North American distributor who tacks on 40–60% margin. Dession sells factory-direct from Foshan — you're paying for the hardware and the engineering, not a sales chain. The actual build quality, control system, and seal integrity are indistinguishable. The support model is different too: Dession provides direct remote engineering via WhatsApp/video call, whereas European brands require you to go through a local distributor whose tech may or may not know your machine.

Can it handle compostable and bio-barrier films?

Yes — and this is where the independent servo drives earn their keep. Compostable films have different heat-sealing windows and friction coefficients than petroleum-based laminates. The Dession's PID ±1°C corner-sealing bars and anti-slip belt drives are adjustable across a wide temperature and tension range, making it compatible with PLA-based and other bio-barrier films. We recommend running a film sample through our lab before ordering — just ship us a roll. It's free.

Is there a minimum order? Do I have to buy multiple units?

MOQ = 1. That's not a typo. Every machine is built to your specific bag dimensions and dosing configuration — not a catalog SKU off a shelf. Send us your pouch spec, your target weight, and the film type you're running, and we engineer the forming shoulder, corner bars, and seal profiles to match.

Where This Fits in Your Production Line

The quad-seal VFFS is your primary bag-forming and filling station, but it integrates into a broader packaging workflow:

1. Upstream: Green coffee → roast → degassing bins (24–72 hours). Whole beans feed into the volumetric cup or multihead weigher via bucket elevator or incline conveyor. For roasters running multiple origins on the same line, a VFFS packaging system with recipe memory eliminates cross-contamination between SKUs.
2. Midstream (this machine): Film unwinds → valve is punched and hot-pressed → film passes through corner-ironing bars → forming tube shapes the quad-seal geometry → bean fill → N₂ purge → final transverse seal → knife cut. One continuous 4–6 second cycle, no intermediate handling.
3. Downstream: Bags exit onto a takeaway conveyor → checkweigher + metal detector → date-code printer → case packing. For high-throughput lines running multiple formats simultaneously, a multi-lane packaging machine can double or triple output for co-packing operations.

About Dession Machinery

Foshan Dession Packaging Machinery Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing, sales, and after-sales service, located in Foshan — China's global hub for packaging machinery manufacturing. With 50+ authorized patents and ISO 9001, CE, ROHS, and SGS certifications, we serve 5,000+ customers across 233 countries and regions including the USA, Canada, UK, Germany, and Australia. Our product lines include VFFS machines, premade pouch machines, quad-seal (Stabilo) baggers, multi-lane packaging systems, liquid filling machines, and complete automated packaging lines for food, pharmaceutical, chemical, and hardware industries.

Minimum Order Quantity: 1 unit. Every single machine is engineered to your pouch dimensions, film type, and production requirements. No one-size-fits-all solutions.
