Multilane Protein Powder Stickpack Machine: Eliminate Bridging & Leaks | Dession Independent Servo Auger

Introduction: The Three Hidden Profit Killers in Protein Powder Co-Packing

In the North American nutraceutical co-packing industry, multi-lane stickpack packaging of whey protein, collagen peptides, and plant-based protein blends faces unprecedented challenges. Many co-packers still rely on traditional gravity-fed multi-head weighers or single-shaft auger fillers—and the results are predictable: sticky protein powders bridge inside hoppers, fill weight variance exceeds ±5% across lanes, and ultra-fine airborne dust contaminates four-side seals causing micro-leaks. These issues translate directly into customer complaints, rework losses, and eroded brand trust.

Even more problematic: when a co-packer needs to switch between whey protein (dairy allergen) and plant-based protein (non-dairy) production lines, traditional equipment cleaning cycles often consume 4-6 hours—severely compressing the effective production window.

Dession's Multilane Protein Powder Servo Auger Stickpack Machine is purpose-built to solve exactly these industry pain points.

Product Overview

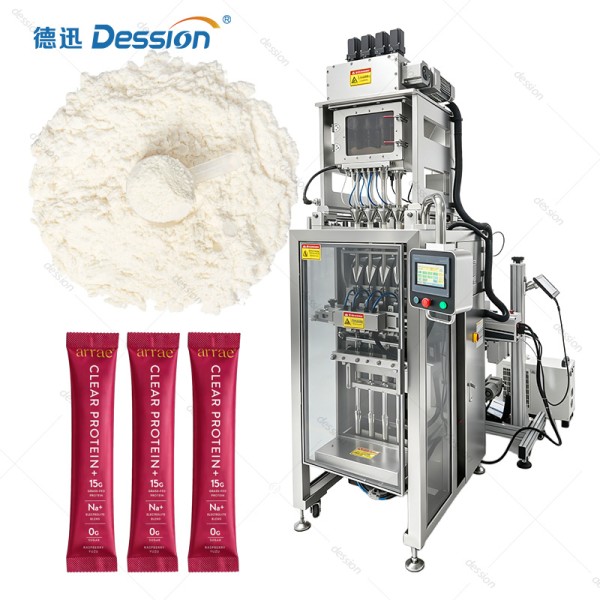

The Dession Multilane Protein Powder Servo Auger Stickpack Machine is a fully automatic multi-lane four-side seal sachet packaging system engineered specifically for high-viscosity nutritional powders. Each lane is driven by an independent servo motor-controlled vertical dosing auger, paired with a pneumatic rotary hopper agitator, fundamentally eliminating powder bridging and fill inconsistency. The machine can be configured with 4 to 12 lanes for parallel production, with individual lane speeds reaching 40-60 pouches per minute—meeting the high-volume, multi-shift continuous production demands of Tier-1 co-packers.

All product contact surfaces are constructed from SUS304/SUS316 food-grade stainless steel with mirror-polished finishes. An active negative-pressure dust extraction matrix operates synchronously at the film slitting, forming, and horizontal sealing zones to capture airborne fines before heat activation, guaranteeing 100% airtight four-side seals. The system complies with FDA, USDA, and GMP sanitary design standards and is available with a minimum order quantity of just 1 unit with full custom engineering support.

For complete technical specifications and a free quotation, please click here to visit the product detail page.

Core Technical Highlights

Pain Points & Solutions

• Pain Point 1: Sticky protein powders bridge in hoppers, causing large fill weight variance across lanes
  Solution: Independent servo-driven augers per lane combined with pneumatic rotary hopper agitators force continuous, uniform material flow, compressing inter-lane fill variance from the industry-typical ±5% to within ±0.5%—satisfying brand-client CPK ≥ 1.33 process capability requirements.
• Pain Point 2: Ultra-fine airborne dust contaminates four-side seals, causing micro-leaks and shortened shelf life
  Solution: An active negative-pressure vacuum extraction matrix integrated at the three critical zones (film slitting, forming, and horizontal sealing) synchronously clears airborne fines before the sealing jaws compress—ensuring 100% airtight, leak-proof seals. This is a technical barrier that traditional gravity-fed filling solutions cannot overcome.
• Pain Point 3: Multi-client co-packing changeovers consume excessive cleaning time, severely compressing the effective production window
  Solution: Split-hopper quick-release design and tool-less auger shaft removal, combined with full SUS304/316 mirror-polished pipelines, reduce whey-to-plant-protein changeover cleaning from the industry average of 4-6 hours to under 30 minutes—increasing equipment utilization by 2-3x.
• Pain Point 4: Slow overseas technical response when equipment fails, resulting in costly downtime
  Solution: The entire machine uses globally available brands (Siemens/Delta PLC, SICK sensors, Omron temperature controls), with spare parts locally procurable. HMI auto-diagnostics plus recipe memory, backed by 24-hour remote technical support synchronized with North American business hours, dramatically reduces unplanned downtime.

Target Industries & Applications

• Tier-1 Nutraceutical Co-Packers: Ideal for high-volume, multi-shift, multi-client stickpack contract packaging of whey protein, plant-based protein, and collagen peptide formulations—meeting the stringent audit and compliance requirements of SternMaid America-tier clients
• Premium Dietary Supplement Brand-Owned Facilities: Delivers premium four-side seal stickpack packaging for high-value products such as whey protein isolate, functional meal replacements, and hydrolyzed collagen—matching brand aesthetics and shelf presence expectations
• High-Mix Low-Volume (HMLV) Health & Wellness Plants: Rapid changeover capability enables a single machine to package multiple protein powder formulations within the same day, maximizing per-machine output
• Cross-Border Nutraceutical E-Commerce Supply Chains: Stickpack sachets are the dominant packaging format for cross-border e-commerce (Amazon, iHerb); four-side seal pouches combine portability, shelf appeal, and logistics crush resistance

Key Technical Specifications

After-Sales Support

The ROI of a multi-lane stickpack machine depends on its ability to run continuously and reliably. Dession's after-sales system is built around three core dimensions:

• 24-Hour Remote Technical Support (Synchronized with North American Business Hours): Senior engineers provide round-the-clock remote fault diagnosis, HMI operation guidance, and parameter tuning—eliminating cross-time-zone communication delays and minimizing downtime losses.
• Rapid-Dispatch Spare Parts Inventory: Critical wear components (servo modules, sealing jaw dies, auger shafts, film guides) are kept in stock with international express shipping available.
• Operator Training & HMI Recipe Setup: On-site or remote installation and commissioning support; HMI recipe memory significantly shortens operator training cycles.
• Global Shipping & Professional Export Packaging: Serving 5,000+ partners across 233 countries and regions, with professional export wooden crate packaging and international freight coordination.

Take Action: Request a Free Quote & Production Line Proposal

If your co-packing facility is struggling with protein powder bridging, seal leaks, and excessive changeover downtime, now is the optimal time to evaluate a next-generation multi-lane servo auger solution.

Dession's Multilane Protein Powder Servo Auger Stickpack Machine comes with free engineering consultation, a minimum order quantity of just 1 unit, and full customization to your specific powder characteristics and throughput requirements.
