High-Speed Automatic Horizontal Suction Nozzle Premade Pouch Liquid Packing Machine

Application:

This premade pouch doypack packing machine finds extensive use in packaging premade bags that contain various liquids and pastes in sectors like food, medical, and daily products. Examples of the substances it can package include soy sauce, vinegar, fruit juice, beverage, chicken essence juice, tomato sauce, chili sauce, bean paste, hotpot seasoning, jelly, food oil, washing liquid, etc., as long as they have good fluidity.
Suitable Pouches: It can work with any premade pouch, such as the stand-up bag, stand-up bag with zip, back-sealed bag, gusset bag, 3-sides-sealed bag, 4-sides-sealed bag, 8-sides-sealed bag, self-sealed bag, and so on.

Kindly Reminder:

Our team of R & D engineers is quite experienced and they are able to customize packaging solutions based on the characteristics of your products.

Packing Exambers:

High-Speed Automatic Horizontal Suction Nozzle Premade Pouch Liquid Packing Machine
High-Speed Automatic Horizontal Suction Nozzle Premade Pouch Liquid Packing Machine

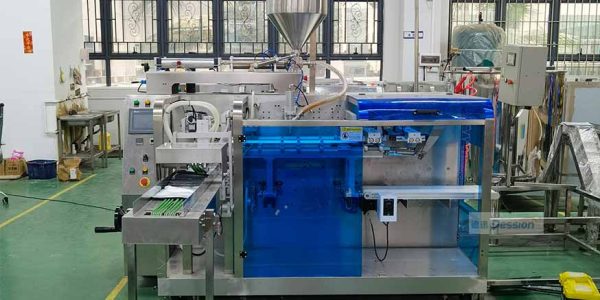

This is a fully-automatic packing machine with multiple functions that can be integrated with various filling systems.
It features a horizontal bagging device which is able to hold a large quantity of bags. Driven by a servo motor, it can operate at high speed. There is an automatic alarming function and it will stop when the air pressure is insufficient.
The high-precision horizontal bag feeding device has an adjustable speed. It is equipped with components of famous brands to ensure the quality and durability of the machine. It can open the zipper efficiently and accurately.
It comes with a double piston metering pump that has a wide measuring range and double feeding nozzles to enhance the packaging speed.
Workflow:
  1. There is an explosion-proof electrical box.
  2. The horizontal bag giving device supplies bags.
  3. The date printer is used to print relevant dates.

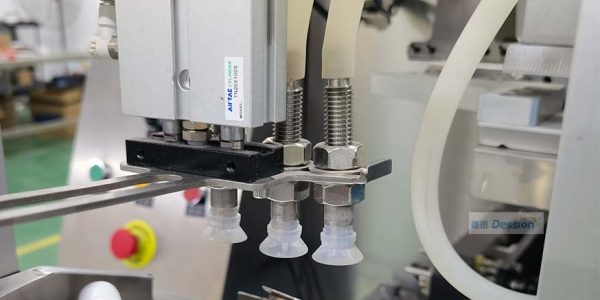

  4. The bag opener opens the bags.
  5. The dual filling nozzles fill the contents.
  6. The double sealing device seals the bags.
  7. Finally, the products are sent out through the outlet.
Type

DS-160, DS-160Y, DS-210
Bag Type

3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Zip
Bag Size

110-230mm*80-160mm(L*W)), 70-100mm*110-230(L*W), 100-210mm*110-320mm(L*W)
Packing Speed

45bags/min(speed is determinedby the product filling quantity), 50bags/min(speed is determinedby the product filling quantity), 20-50bags/min(speed is determinedby the product filling quantity)
Filling Range

10g-100g, 10g-100g, 10g-1kg
Machine weight

800KG, 800KG, 900KG
Total Power

2.0KW, 2.0KW, 2.0KW
Work Flow

1.Giving bag 2.Pick up the bag(coding) 3.0pen the bag up and down 4.Feeding and jolting 5.Heating sealing 6.Output of product
Dimensions

2140mmX1366mmX1360mm(L*W*H), 1750mm X 1285mm X 1360mm(L*W*H)
Collocation

Screw metering,screw elevator
